Compare to

EHX™ Memory Man

Build Resources

PCB: Madbean Pedals Total Recall
Docs: BUILD DOC

Mike Fabulosa

I’m a wee bit out of my mind. Been blasting Diary of a Madman and Crazy Train into my skull since the early ’80s. Been finding ways to deal with Bi-Polar Disorder and ADHD all my life. The pandemic introduced new challenges. That is what lead me to start building pedals. A way to immerse myself into so many different creative activities. This is where I share my creations and the stories, successes, failures and what I have learned with others. Feel free to browse around. Let me know what I got wrong or where I might improve. Most of all I just hope you enjoy what I have created and can maybe gain some new insights.

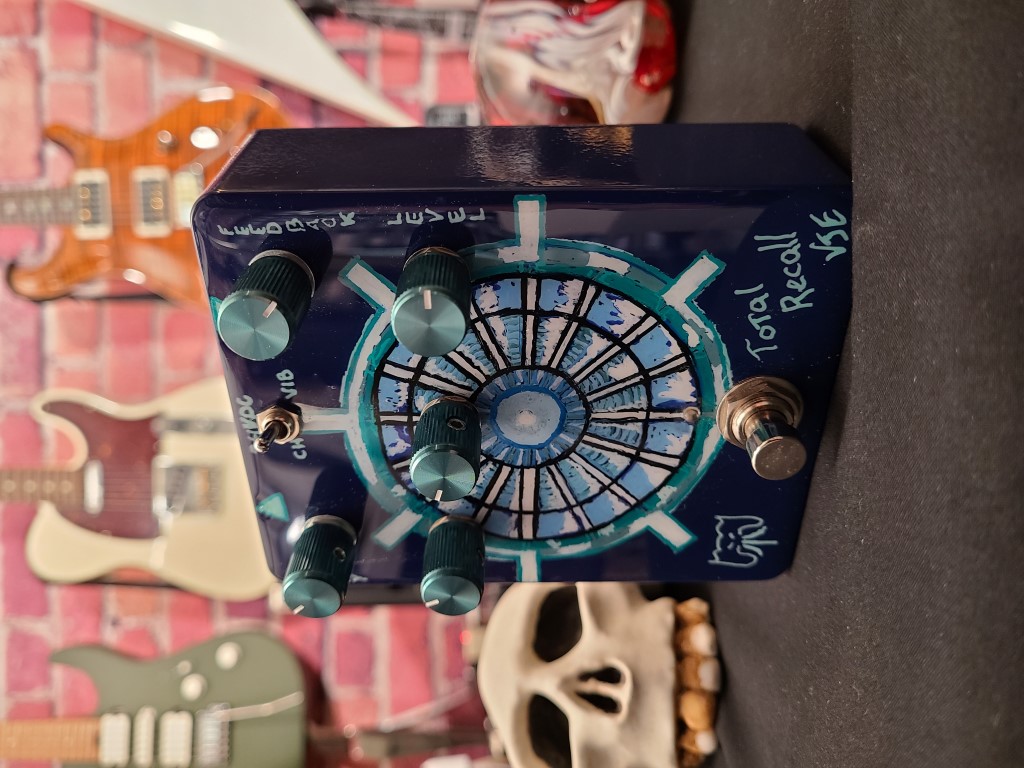

This is the final pedal of my Madbean Gauntlet. This is the most difficult one that he has available.

Thoughts

This is the Zeus build on the Madbean projects page. I took it very slowly building this pedal.

Controls

  • Delay - Total delay time from slap-back to approximately 550ms
  • FDBK - The total number of repeats from one to many to self-oscillation
  • Level - The input gain of the circuit. This control can create mild overdrive when turned up
  • Blend - The dry/wet ratio of guitar and delay
  • Mod - The depth of modulation applied to the delay signal (The modulation rate is fixed)
  • CH/VB - This switches between chorus and vibrato type modulation
placeholder image 1 placeholder image 2 placeholder image 3 placeholder image 4 placeholder image 5 placeholder image 6 placeholder image 7 placeholder image 8 placeholder image 9 placeholder image 10
Build Gallery
