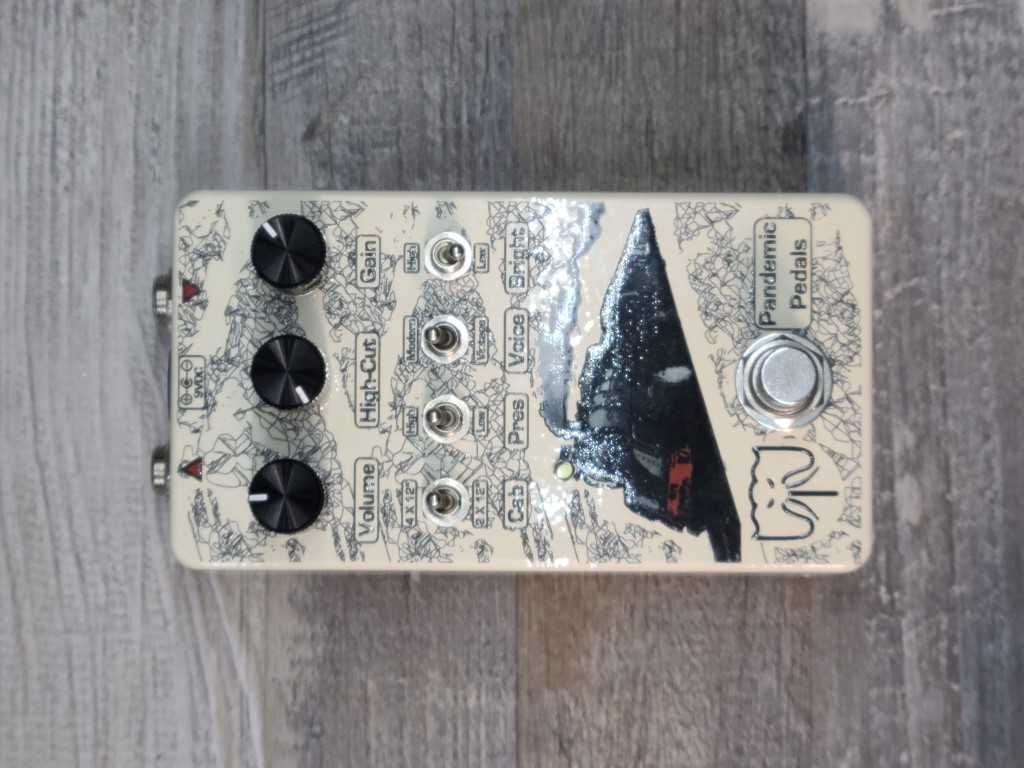

I will get images up soon but it is the same pedal and art as Pandemic Pedal #124. The only difference is that the LED is white and where the train light is and I used TL072 chip instead of the OPA2134. It gives it a little darker tone.
Controls
From the spec sheet:
- GAIN: Controls the overall input gain of unit
- HI-CUT: Provides a post OD high frequency cut ideal for amp tuning
- VOLUME: Controls the overall volume of the unit
Switches
- BRITE: This circuit provides two levels of pre OD high frequency boost and an off setting. The degree of boost decreases
as the GAIN control is increased.
- UP: maximum boost. Adds extreme top end clarity and should be set to get best clean-up performance when using humbucker pickups.
- MIDDLE: OFF, Flat Band Response
- DOWN: Moderate boost ideal for adding sparkle to your tone.
- VOICE: Provides two distinct voices for the pedal post OD.
- UP: Traditional Voice
- DOWN: Modern British Voice
- PRESENCE: Provides three levels of post OD high frequency response. Ideal for matching the unit to your amp s top end
response.
- UP: maximum boost. Adds top end bite. Best used with dark amps or when going into a flat band power amp
- MIDDLE: Flat frequency response
- DOWN: Darkest setting used best with a bright amp
- CAB: Provides three modes ideal for matching the unit to your amp’s low end response.
- UP: 4x12 Adds extended low end boost
- MIDDLE: OFF, Flat Band Response
- DOWN: 2x12 Adds moderate low end boost

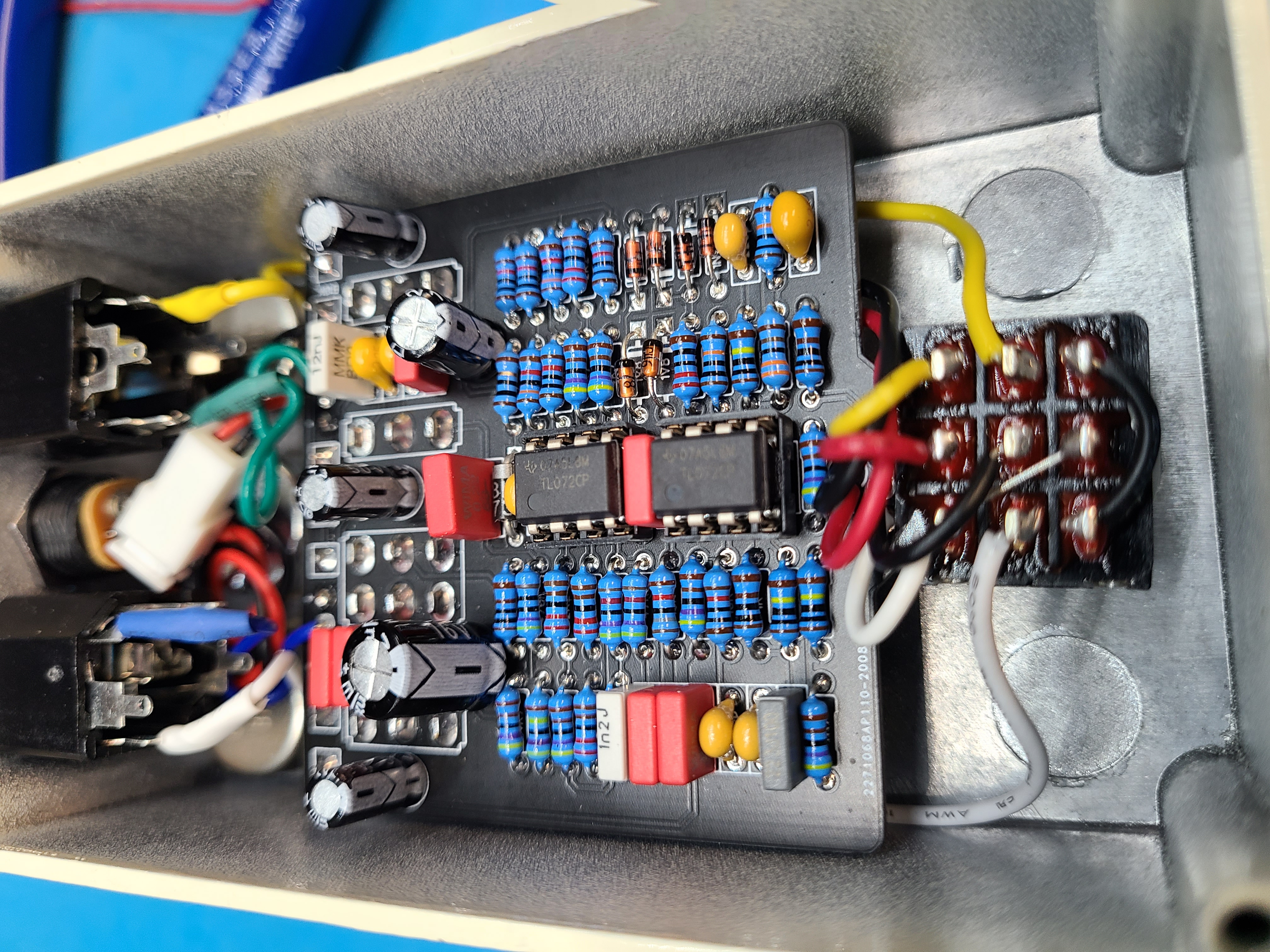

Build Gallery
